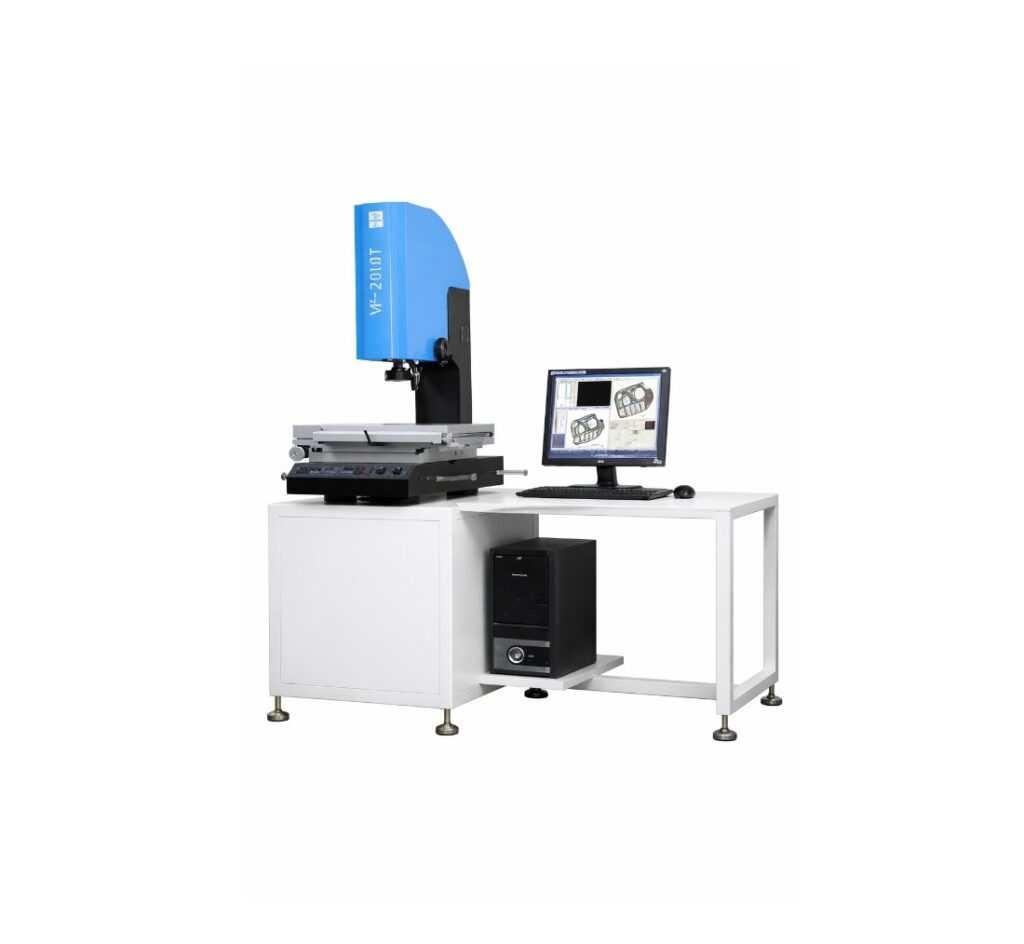

Vision Measuring Machine
A Vision Measuring Machine (VMM) is an advanced optical system used for precise, non-contact inspection and dimensional measurement, ensuring fast, accurate, and reliable results for quality control and manufacturing applications.
- High Accuracy Non-Contact Measurement
- Advanced Optical & Imaging System
- Efficient Quality Control Solution
Vision Measuring Machine
TECHNICAL SPECIFICATIONS
| Worktable | The metal table size (mm) | 500 × 330 |
| The glass table size (mm) | 350 × 280 | |
| X, Y axis travel (mm) | 300 × 200 | |
| Weight (kg) | 260 | |
| Dimensions (L × W × H) mm | 756 × 540 × 860 | |
| Measuring System (Standard Accessories) | Camera | Color CCD Camera |
| Zoom Lens Magnification | 0.7X – 4.5X | |
| Total Magnification | 30X – 190X | |
| Probe | Renishaw MCP Probe (Optional) | |
| Z-axis Stroke (mm) | 150 | |
| Indication Error of X,Y-axis | 3 + L/200 µm (L in mm) | |
